性能文章>【全网首发】MQ-消息堆积-JDK Bug导致线程阻塞案例分析>

【全网首发】MQ-消息堆积-JDK Bug导致线程阻塞案例分析原创

7528410

背景介绍

业务介绍

在某学习APP浏览文章,客户端会将浏览的文章信息上传到服务端,服务端将浏览信息最终存储到HBase;
在某学习APP首页点击【我的】->【历史】,会展示用户浏览文章的历史记录。

技术介绍

服务端的服务是【阅读历史离线服务】,从metaq消费用户阅读文章的信息,解析、处理相关业务逻辑,最后存储到HBase。

问题现象

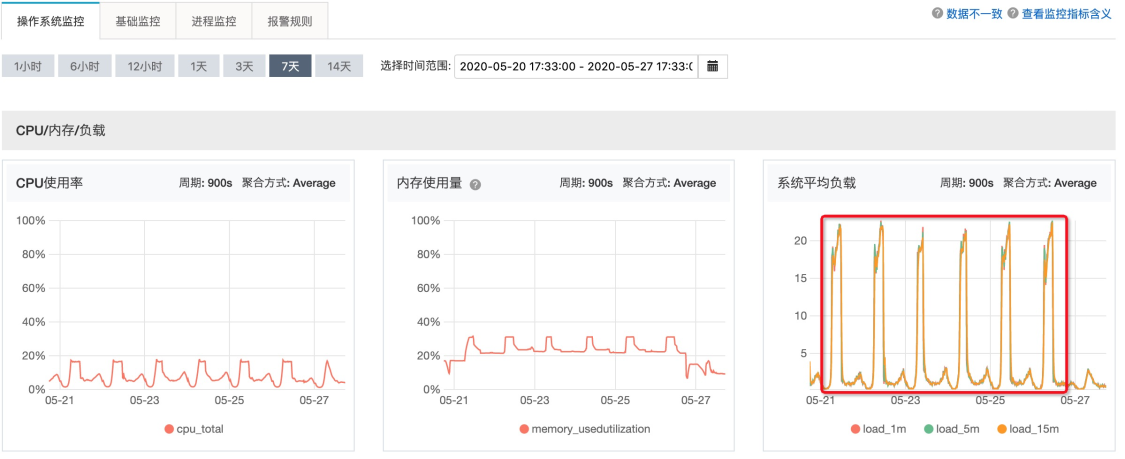

ECS监控

两台机器【xx-xxxx-xxx-xxx-xxx-xxx-6、xx-xxx-xxx-xxx-xxx-xxx-1】在早高峰的时候Load很高,CPU使用率正常。

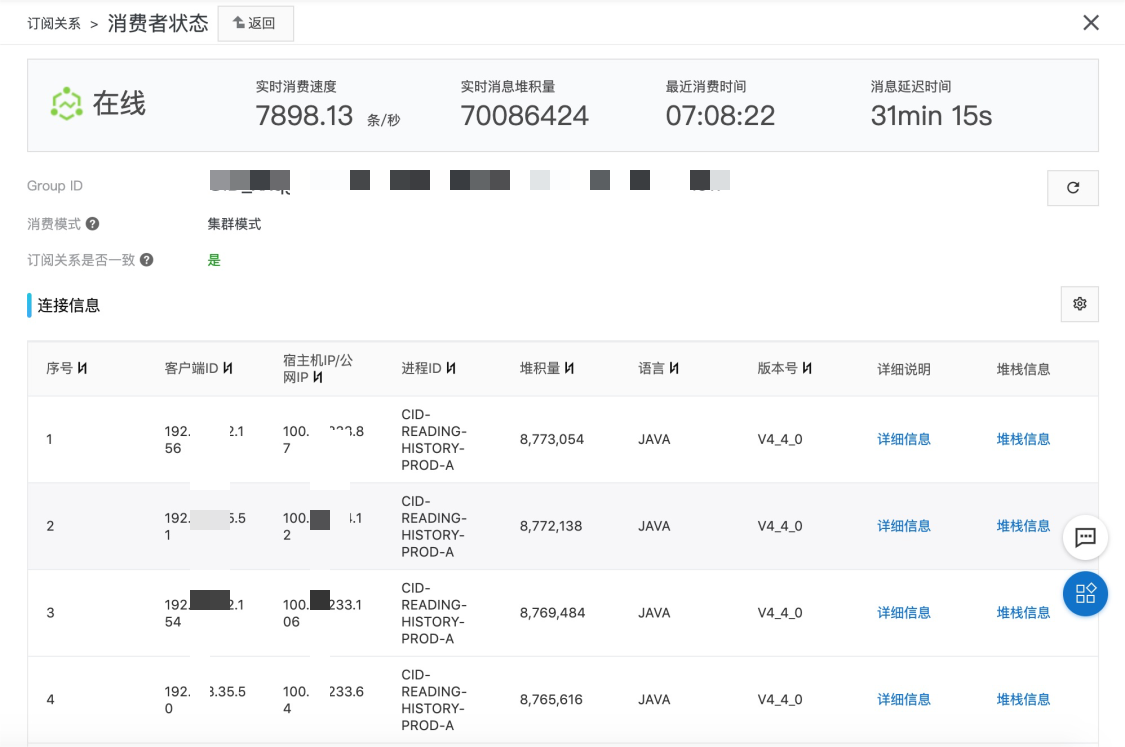

metaq监控

造成消息消费的慢,每天早上都有大量消息堆积,导致用户看不到自己的阅读历史。

问题分析

基本情况

【阅读历史离线服务】共有x台ECS,每台ECS配置是8c16g。其中x台机器正常,2台机器不正常。

排查思路

找不同

分析不正常机器与正常机器有哪些差异:对比了【应用程序版本】、【应用程序配置】、【JVM配置参数】、【JDK版本】、【操作系统版本】,发现【JDK版本】不一致。
正常机器:

openjdk version "1.8.0_171"
OpenJDK Runtime Environment (build 1.8.0_171-b10)
OpenJDK 64-Bit Server VM (build 25.171-b10, mixed mode)

异常机器:

openjdk version "1.8.0_222"
OpenJDK Runtime Environment (build 1.8.0_222-b10)
OpenJDK 64-Bit Server VM (build 25.222-b10, mixed mode)

到此初步定位不同机器运行状态不一致的现象是由于【JDK版本】不一致造成的,所以将【问题机器的JDK版本】替换为【正常机器的JDK版本】问题就可以解决了。

定位问题代码

但是问题的根因还需要尝试排查一下,既然是【JDK版本】不一致造成的,那么会不会是【1.8.0_222】这个版本中有BUG,刚好我们写的程序触发了这个BUG?

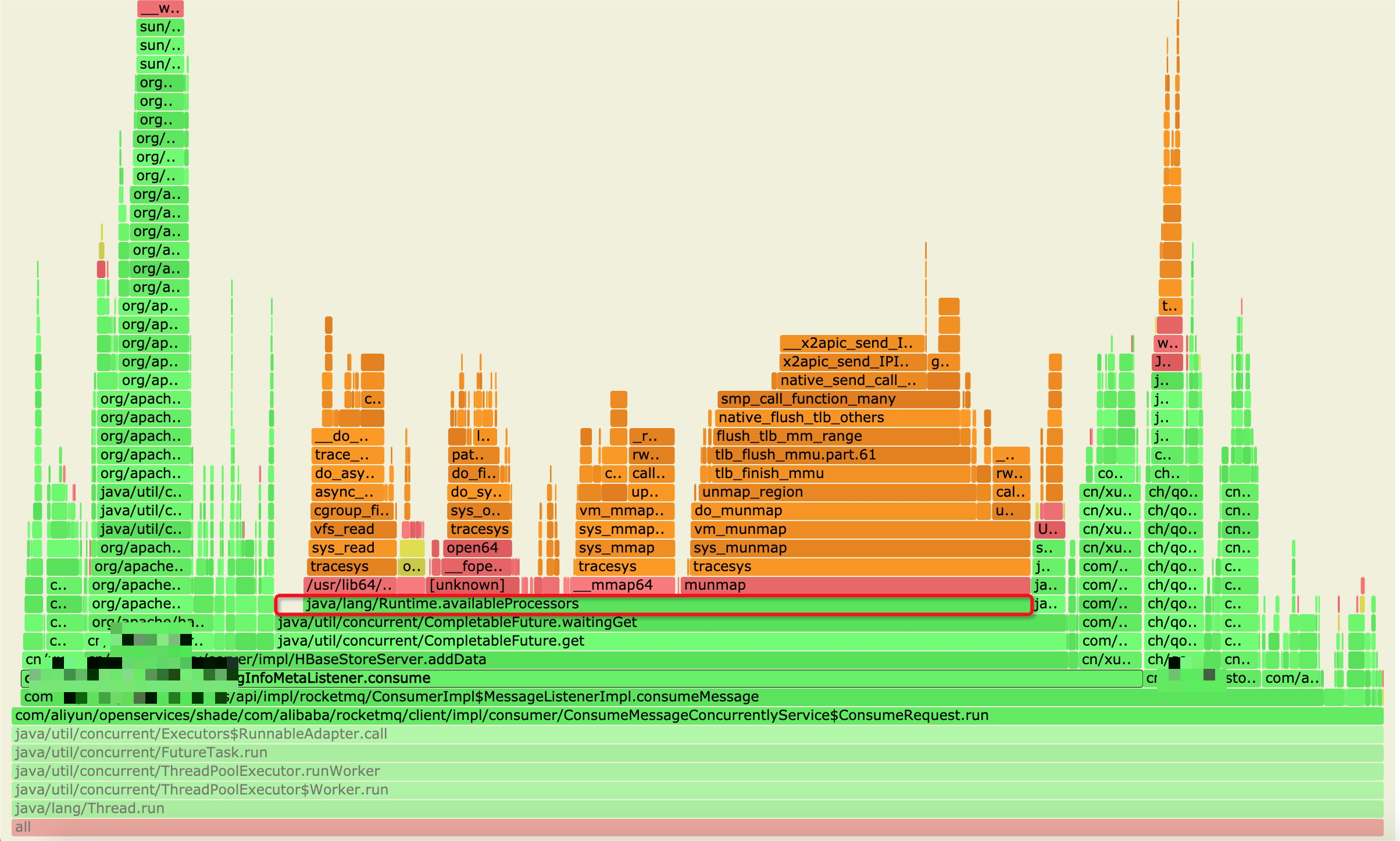

所以接下来需要弄清楚程序运行过程中执行了哪些业务逻辑、这些业务逻辑涉及到了哪些JDK API,直接想到的工具是arthas profiler,下面是抓到的热点方法。
通过对比【异常机器】与【正常机器】的热点方法,发现Runtime.getRuntime().availableProcessors()很可疑:
业务相关代码:

CompletableFuture<Result> completableFuture = //业务逻辑,调用hbase-client中api
completableFuture.whenCompleteAsync((result, t) -> {
   //业务逻辑处理
}, Pool.getSubmitPool()).exceptionally((t) -> {
   //业务逻辑处理
}).get();

CompletableFuture相关代码:

/**
     * Waits if necessary for this future to complete, and then
     * returns its result.
     *
     * @return the result value
     * @throws CancellationException if this future was cancelled
     * @throws ExecutionException if this future completed exceptionally
     * @throws InterruptedException if the current thread was interrupted
     * while waiting
     */
    public T get() throws InterruptedException, ExecutionException {
        Object r;
        return reportGet((r = result) == null ? waitingGet(true) : r);
    }
/**
     * Returns raw result after waiting, or null if interruptible and
     * interrupted.
     */
    private Object waitingGet(boolean interruptible) {
        Signaller q = null;
        boolean queued = false;
        int spins = -1;
        Object r;
        while ((r = result) == null) {
            if (spins < 0)
                spins = (Runtime.getRuntime().availableProcessors() > 1) ?
                    1 << 8 : 0; // Use brief spin-wait on multiprocessors
            else if (spins > 0) {
                if (ThreadLocalRandom.nextSecondarySeed() >= 0)
                    --spins;
            }
            else if (q == null)
                q = new Signaller(interruptible, 0L, 0L);
            else if (!queued)
                queued = tryPushStack(q);
            else if (interruptible && q.interruptControl < 0) {
                q.thread = null;
                cleanStack();
                return null;
            }
            else if (q.thread != null && result == null) {
                try {
                    ForkJoinPool.managedBlock(q);
                } catch (InterruptedException ie) {
                    q.interruptControl = -1;
                }
            }
        }
        if (q != null) {
            q.thread = null;
            if (q.interruptControl < 0) {
                if (interruptible)
                    r = null; // report interruption
                else
                    Thread.currentThread().interrupt();
            }
        }
        postComplete();
        return r;
    }

猜测验证

public class Processors {
    public static void main(String []args) {
        int availableProcessors = Runtime.getRuntime().availableProcessors();
        System.out.println("Available Processors: " + availableProcessors);

        for(int i = 0;i < availableProcessors;i++){
            Thread t = new Thread(()-> {
                    while (true){
                        try {
                            int ps = Runtime.getRuntime().availableProcessors();
                            Thread.sleep(1L);
                        }catch (Exception e){
                            e.printStackTrace();
                        }
                    }
            });

            t.start();
        }
    }
}

将验证代码在【JDK版本】为【1.8.0_222】的机器上运行,随即复现了线上问题。

定位根因

那么【1.8.0_222】与【1.8.0_171】版本在Runtime.getRuntime().availableProcessors()的实现上有什么差别呢?【1.8.0_222】增加了容器环境的逻辑,比【1.8.0_171】复杂了很多。

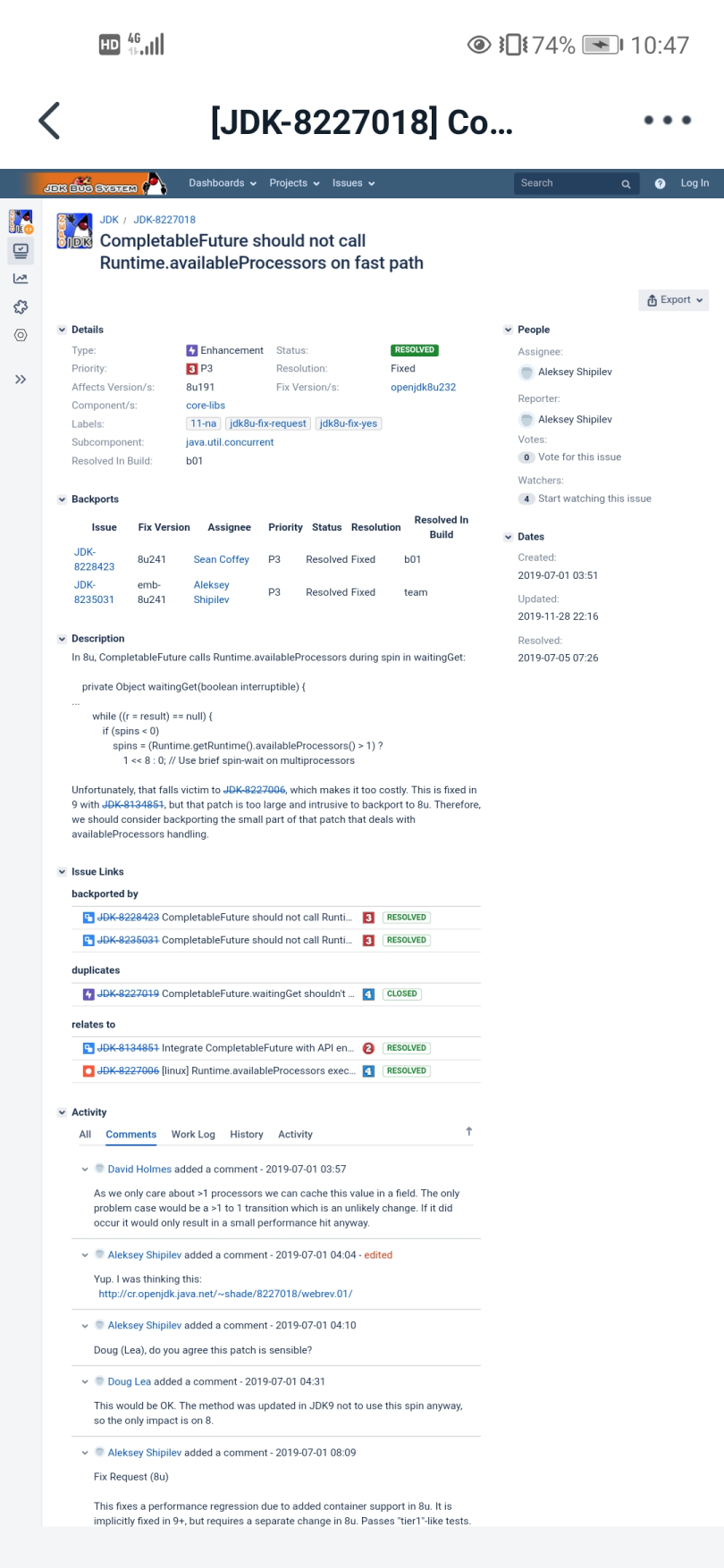

最后我们看看在https://bugs.openjdk.java.net/的解释吧。
总结:
Runtime.getRuntime().availableProcessors()在不同JDK版本上的实现是没有问题的,CompletableFuture.waitingGet在【1.8.0_222】版本上,没有测试到Runtime.getRuntime().availableProcessors()对性能的影响,导致了性能问题。

解决方法

openjdk在1.8.0_191~1.8.0_222之间的版本都存在问题,换成1.8.0_191之前,或1.8.0_232及以后的版本可以。

问题根因

CompletableFuture.get()的实现方式在一些jdk版本存在缺陷,
详情见:CompletableFuture should not call Runtime.availableProcessors on fast path
