【全网首发】一次druid数据库连接池连接泄露的排查分析原创

3517912

最近项目组某应用将数据库由Oracle切换到了TBase,遇到了数据库连接泄露导致无法创建新连接的问题,下面是问题的分析过程。

问题现象

应用侧异常日志

为了便于阅读,去掉了线程栈中不相关的栈帧。

com.alibaba.druid.pool.GetConnectionTimeoutException: wait millis 5000, active 0, maxActive 30, creating 0, createErrorCount 13047
	at com.alibaba.druid.pool.DruidDataSource.getConnectionInternal(DruidDataSource.java:1773)
	at com.alibaba.druid.pool.DruidDataSource.getConnectionDirect(DruidDataSource.java:1427)
	at com.alibaba.druid.filter.FilterChainImpl.dataSource_connect(FilterChainImpl.java:5059)
	at com.alibaba.druid.filter.logging.LogFilter.dataSource_getConnection(LogFilter.java:917)
	at com.alibaba.druid.filter.FilterChainImpl.dataSource_connect(FilterChainImpl.java:5055)
	at com.alibaba.druid.filter.stat.StatFilter.dataSource_getConnection(StatFilter.java:726)
	at com.alibaba.druid.filter.FilterChainImpl.dataSource_connect(FilterChainImpl.java:5055)
	at com.alibaba.druid.pool.DruidDataSource.getConnection(DruidDataSource.java:1405)
	at com.alibaba.druid.pool.DruidDataSource.getConnection(DruidDataSource.java:1397)
	at com.alibaba.druid.pool.DruidDataSource.getConnection(DruidDataSource.java:100)
	at org.springframework.jdbc.datasource.DataSourceTransactionManager.doBegin(DataSourceTransactionManager.java:204)
	at org.springframework.transaction.support.AbstractPlatformTransactionManager.getTransaction(AbstractPlatformTransactionManager.java:373)
	at org.springframework.transaction.interceptor.TransactionAspectSupport.createTransactionIfNecessary(TransactionAspectSupport.java:430)
	at org.springframework.transaction.interceptor.TransactionAspectSupport.invokeWithinTransaction(TransactionAspectSupport.java:276)
	at org.springframework.transaction.interceptor.TransactionInterceptor.invoke(TransactionInterceptor.java:96)
	at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:179)
	at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:213)
	... ...//省略的栈帧
	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1142)
	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:617)
at java.lang.Thread.run(Thread.java:745) Caused by: org.postgresql.util.PSQLException: FATAL: remaining connection slots are reserved for non-replication superuser connections
	at org.postgresql.core.v3.ConnectionFactoryImpl.doAuthentication(ConnectionFactoryImpl.java:693)
	at org.postgresql.core.v3.ConnectionFactoryImpl.tryConnect(ConnectionFactoryImpl.java:203)
	at org.postgresql.core.v3.ConnectionFactoryImpl.openConnectionImpl(ConnectionFactoryImpl.java:258)
	at org.postgresql.core.ConnectionFactory.openConnection(ConnectionFactory.java:54)
	at org.postgresql.jdbc.PgConnection.<init>(PgConnection.java:263)
	at org.postgresql.Driver.makeConnection(Driver.java:443)
	at org.postgresql.Driver.connect(Driver.java:297)
	at com.alibaba.druid.filter.FilterChainImpl.connection_connect(FilterChainImpl.java:156)
	at com.alibaba.druid.filter.FilterAdapter.connection_connect(FilterAdapter.java:787)
	at com.alibaba.druid.filter.FilterEventAdapter.connection_connect(FilterEventAdapter.java:38)
	at com.alibaba.druid.filter.FilterChainImpl.connection_connect(FilterChainImpl.java:150)
	at com.alibaba.druid.filter.stat.StatFilter.connection_connect(StatFilter.java:251)
	at com.alibaba.druid.filter.FilterChainImpl.connection_connect(FilterChainImpl.java:150)
	at com.alibaba.druid.pool.DruidAbstractDataSource.createPhysicalConnection(DruidAbstractDataSource.java:1659)
	at com.alibaba.druid.pool.DruidAbstractDataSource.createPhysicalConnection(DruidAbstractDataSource.java:1723)
	at com.alibaba.druid.pool.DruidDataSource$CreateConnectionThread.run(DruidDataSource.java:2838)

从上面线程栈可知,org.postgresql.util.PSQLException导致了com.alibaba.druid.pool.GetConnectionTimeoutException,所以org.postgresql.util.PSQLException是根因:FATAL: remaining connection slots are reserved for non-replication superuser connections,该异常表示TBase Server端该用户的连接数达到了阈值。接下来看一下TBase服务端连接数的情况。

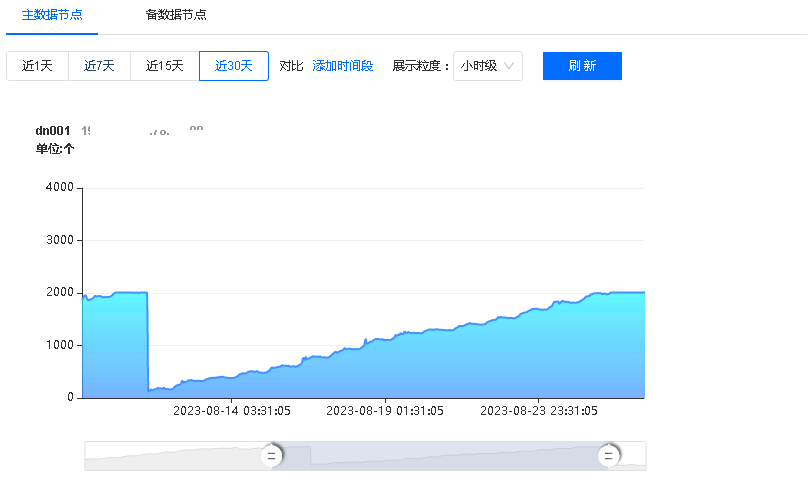

TBase服务端连接数

从上图可知

  • 由于达到了TBase Server端连接数2000的阈值,所以导致了应用无法创建连接的异常;
  • 随着应用运行,连接数在慢慢增加,很明显存在连接泄露的问题。

基本信息

应用使用的druid连接池,版本是_druid-1.2.8;TBase JDBC Driver是postgresql-42.6.0;TBase Server版本是10.0 @ Tbase_v5.06.4.3 (commit: 6bd7f61dc)_。
JDK版本:

java version "1.8.0_65"
Java(TM) SE Runtime Environment (build 1.8.0_65-b17)
Java HotSpot(TM) 64-Bit Server VM (build 25.65-b01, mixed mode)

druid配置

druid配置包括两部分,分别是:Filter、DataSource。

Filter

<bean id="filter-log4j2" class="com.alibaba.druid.filter.logging.Log4j2Filter">
    <property name="connectionLogEnabled" value="true" />
    <property name="statementLogEnabled" value="true" />
    <property name="statementExecutableSqlLogEnable" value="true" />
    <property name="resultSetLogEnabled" value="false" />
</bean>

DataSource

<bean id="dataSource6" class="com.alibaba.druid.pool.DruidDataSource" init-method="init" destroy-method="close">
		<property name="driverClassName" value="org.postgresql.Driver" />
		<property name="url" value="${db.tbase.url}" />
		<property name="username" value="${db.tbase.username}" />
		<property name="password" value="${db.tabse.secpwd}" />

		<property name="initialSize" value="2" />
		<property name="minIdle" value="5" />
		<property name="maxActive" value="30" />
		<property name="maxWait" value="5000" />

		<property name="timeBetweenEvictionRunsMillis" value="60000" />
		<property name="minEvictableIdleTimeMillis" value="300000" />

		<property name="testWhileIdle" value="true" />
		<property name="testOnBorrow" value="false" />
		<property name="testOnReturn" value="false" />

		<property name="phyTimeoutMillis" value="1800000" />

		<property name="poolPreparedStatements" value="false" />
		<property name="maxPoolPreparedStatementPerConnectionSize" value="20" />

		<!-- 对泄漏的连接 自动关闭 -->
		<!-- 打开removeAbandoned功能 -->
		<property name="removeAbandoned" value="true" />
		<!-- 60秒,也就是1分钟 -->
		<property name="removeAbandonedTimeout" value="60" />
		<!-- 关闭abanded连接时输出错误日志 -->
		<property name="logAbandoned" value="true" />

		<!-- 配置监控统计拦截的filters -->
		<property name="filters" value="mergeStat" />
		<property name="proxyFilters">
				<list>
						<ref bean="filter-log4j2" />
				</list>
		</property>

		<property name="connectionProperties" value="druid.stat.slowSqlMillis=5000" />
</bean>

问题分析

removeAbandoned

数据库连接泄露,首先想到的是应用程序从数据库连接池获取到连接,使用完之后是否没有释放?
从上面的异常信息看是不存在这种情况的,因为active是0(即当前正在使用的连接数是0),为了便于理解,下面分析下druid这块的逻辑。
从上面可知,druid removeAbandoned相关配置为:

<!-- 对泄漏的连接 自动关闭 -->
<!-- 打开removeAbandoned功能 -->
<property name="removeAbandoned" value="true" />
<!-- 60秒,也就是1分钟 -->
<property name="removeAbandonedTimeout" value="60" />
<!-- 关闭abanded连接时输出错误日志 -->
<property name="logAbandoned" value="true" />

申请连接

以下代码在DruidDataSource类的getConnectionDirect方法中。

DruidPooledConnection poolableConnection ;
... ...
if (removeAbandoned) {
    StackTraceElement[] stackTrace = Thread.currentThread().getStackTrace();
    poolableConnection.connectStackTrace = stackTrace;
    poolableConnection.setConnectedTimeNano();
    poolableConnection.traceEnable = true;

    activeConnectionLock.lock();
    try {
        activeConnections.put(poolableConnection, PRESENT);
    } finally {
        activeConnectionLock.unlock();
    }
}

释放连接

以下代码在DruidDataSource类的recycle方法中,该方法是在应用程序将连接归还给连接池的时候调用。

DruidPooledConnection poolableConnection ;
... ...
if (pooledConnection.traceEnable) {
    Object oldInfo = null;
    activeConnectionLock.lock();
    try {
        if (pooledConnection.traceEnable) {
            oldInfo = activeConnections.remove(pooledConnection);
            pooledConnection.traceEnable = false;
        }
    } finally {
        activeConnectionLock.unlock();
    }
    if (oldInfo == null) {
        if (LOG.isWarnEnabled()) {
            LOG.warn("remove abandonded failed. activeConnections.size " + activeConnections.size());
        }
    }
}

如果应用程序没有释放连接,activeConnections会有未释放连接的引用

释放泄露的连接

DruidDataSource中有个Druid-ConnectionPool-Destroy-XX的线程负责释放连接:

protected void createAndStartDestroyThread() {
    destroyTask = new DestroyTask();

    if (destroyScheduler != null) {
        long period = timeBetweenEvictionRunsMillis;
        if (period <= 0) {
            period = 1000;
        }
        destroySchedulerFuture = destroyScheduler.scheduleAtFixedRate(destroyTask, period, period,
                                                                      TimeUnit.MILLISECONDS);
        initedLatch.countDown();
        return;
    }

    String threadName = "Druid-ConnectionPool-Destroy-" + System.identityHashCode(this);
    destroyConnectionThread = new DestroyConnectionThread(threadName);
    destroyConnectionThread.start();
}

因为destroyScheduler是null,所以使用的是DestroyConnectionThread,每隔timeBetweenEvictionRunsMillis执行一次释放任务。

public class DestroyConnectionThread extends Thread {
    public DestroyConnectionThread(String name){
        super(name);
        this.setDaemon(true);
    }
    public void run() {
        initedLatch.countDown();
        for (;;) {
            // 从前面开始删除
            try {
                if (closed || closing) {
                    break;
                }
                if (timeBetweenEvictionRunsMillis > 0) {
                    Thread.sleep(timeBetweenEvictionRunsMillis);
                } else {
                    Thread.sleep(1000); //
                }
                if (Thread.interrupted()) {
                    break;
                }
                destroyTask.run();
            } catch (InterruptedException e) {
                break;
            }
        }
    }
}
public class DestroyTask implements Runnable {
    public DestroyTask() {
    }

    @Override
    public void run() {
        shrink(true, keepAlive);

        if (isRemoveAbandoned()) {
            removeAbandoned();
        }
    }
}
public int removeAbandoned() {
    int removeCount = 0;
    long currrentNanos = System.nanoTime();
    List<DruidPooledConnection> abandonedList = new ArrayList<DruidPooledConnection>();
    activeConnectionLock.lock();
    try {
        Iterator<DruidPooledConnection> iter = activeConnections.keySet().iterator();
        for (; iter.hasNext();) {
            DruidPooledConnection pooledConnection = iter.next();
            if (pooledConnection.isRunning()) {
                continue;
            }
            long timeMillis = (currrentNanos - pooledConnection.getConnectedTimeNano()) / (1000 * 1000);
            if (timeMillis >= removeAbandonedTimeoutMillis) {
                iter.remove();
                pooledConnection.setTraceEnable(false);
                abandonedList.add(pooledConnection);
            }
        }
    } finally {
        activeConnectionLock.unlock();
    }

    if (abandonedList.size() > 0) {
        for (DruidPooledConnection pooledConnection : abandonedList) {
            final ReentrantLock lock = pooledConnection.lock;
            lock.lock();
            try {
                if (pooledConnection.isDisable()) {
                    continue;
                }
            } finally {
                lock.unlock();
            }
        	//释放连接
            JdbcUtils.close(pooledConnection);
            pooledConnection.abandond();
            removeAbandonedCount++;
            removeCount++;
        	//打印日志
            if (isLogAbandoned()) {
                StringBuilder buf = new StringBuilder();
                buf.append("abandon connection, owner thread: ");
                buf.append(pooledConnection.getOwnerThread().getName());
                buf.append(", connected at : ");
                buf.append(pooledConnection.getConnectedTimeMillis());
                buf.append(", open stackTrace\n");

                StackTraceElement[] trace = pooledConnection.getConnectStackTrace();
                for (int i = 0; i < trace.length; i++) {
                    buf.append("\tat ");
                    buf.append(trace[i].toString());
                    buf.append("\n");
                }

                buf.append("ownerThread current state is " + pooledConnection.getOwnerThread().getState()
                           + ", current stackTrace\n");
                trace = pooledConnection.getOwnerThread().getStackTrace();
                for (int i = 0; i < trace.length; i++) {
                    buf.append("\tat ");
                    buf.append(trace[i].toString());
                    buf.append("\n");
                }

                LOG.error(buf.toString());
            }
        }
    }

    return removeCount;
}

从以上分析可知,即使应用没有释放连接,Druid-ConnectionPool-Destroy线程也会释放掉activeConnections中的连接(除非业务线程一直阻塞,连接处于running==true的状态,通过分析线程栈不存在这种情况)。

泄露的连接不是通过连接池申请的?

另一个可能的原因是泄露的连接不是通过连接池申请的,而是应用自己创建出来,但是没有执行关闭连接的操作。所以思路是拿到所有创建连接的线程栈,然后通过分析线程栈找到有哪些地方创建的连接,这里我们使用arthas的watch来完成。

//抓取PgConnection本地端口号和线程栈
watch org.postgresql.core.v3.ConnectionFactoryImpl openConnectionImpl "{returnObj.pgStream.connection.impl.localport,@org.apache.commons.lang3.exception.ExceptionUtils@getStackTrace(new java.lang.Exception())}" -n 99999999 > /xxx/xxx/xxx/xxx.txt &

TBase的数据库连接对象是org.postgresql.jdbc.PgConnection,在PgConnection初始化的时候会调用org.postgresql.core.v3.ConnectionFactoryImpl.openConnectionImpl。
生成的文件中记录了每个数据库连接的【本地端口号】和【线程栈】,通过对线程栈进行分析,发现数据库连接都是通过连接池创建出来的。下面是创建数据库连接的线程栈:

at org.postgresql.core.v3.ConnectionFactoryImpl.openConnectionImpl(ConnectionFactoryImpl.java:330)
at org.postgresql.core.ConnectionFactory.openConnection(ConnectionFactory.java:54)
at org.postgresql.jdbc.PgConnection.<init>(PgConnection.java:263)
at org.postgresql.Driver.makeConnection(Driver.java:443)
at org.postgresql.Driver.connect(Driver.java:297)
at com.alibaba.druid.filter.FilterChainImpl.connection_connect(FilterChainImpl.java:156)
at com.alibaba.druid.filter.FilterAdapter.connection_connect(FilterAdapter.java:787)
at com.alibaba.druid.filter.FilterEventAdapter.connection_connect(FilterEventAdapter.java:38)
at com.alibaba.druid.filter.FilterChainImpl.connection_connect(FilterChainImpl.java:150)
at com.alibaba.druid.filter.stat.StatFilter.connection_connect(StatFilter.java:251)
at com.alibaba.druid.filter.FilterChainImpl.connection_connect(FilterChainImpl.java:150)
at com.alibaba.druid.pool.DruidAbstractDataSource.createPhysicalConnection(DruidAbstractDataSource.java:1659)
at com.alibaba.druid.pool.DruidAbstractDataSource.createPhysicalConnection(DruidAbstractDataSource.java:1723)
at com.alibaba.druid.pool.DruidDataSource$CreateConnectionThread.run(DruidDataSource.java:2838)

既然数据库连接都是通过连接池创建出来的,那么数据库连接应该都是受到连接池管理的。

数据库连接池连接与netstat看到的不一致

既然连接都是连接池管理的,那么分析下连接池中的连接信息:

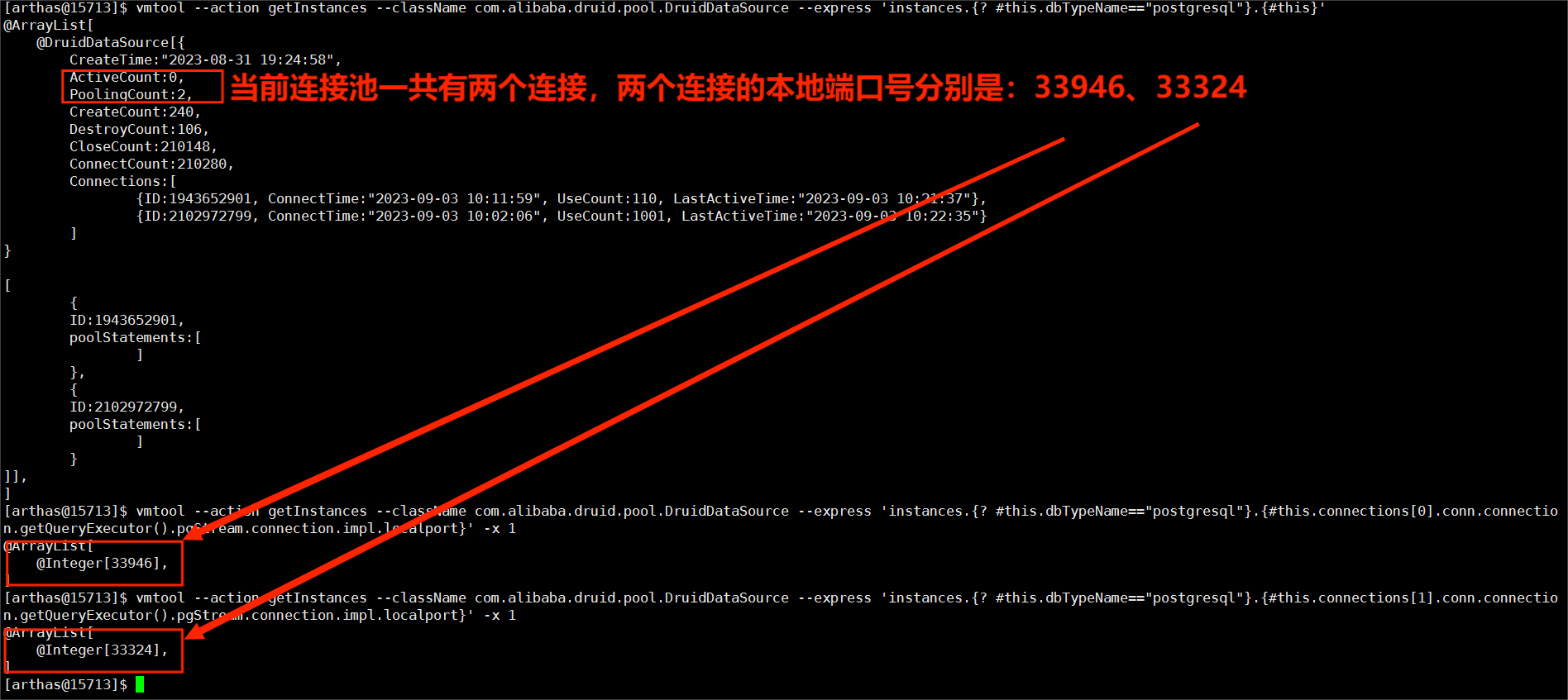

连接池中连接信息

//查看连接池信息
vmtool --action getInstances --className com.alibaba.druid.pool.DruidDataSource --express 'instances.{? #this.dbTypeName=="postgresql"}.{#this}'
//查看连接池中连接本地端口号
vmtool --action getInstances --className com.alibaba.druid.pool.DruidDataSource --express 'instances.{? #this.dbTypeName=="postgresql"}.{#this.connections[0].conn.connection.getQueryExecutor().pgStream.connection.impl.localport}' -x 1


netstat连接信息

netstat共查出8个连接,其中只有33946和33324是在连接池中的,其他6个都不在连接池中。
分析到这里,可以确定存在连接泄露,即有连接没有被关闭的情况,那么哪些地方进行了连接关闭呢?

连接关闭的路径有哪些?

上面已经抓取到了每个PgConnection的创建路径,现在抓取每个PgConnection的关闭路径,如果一个PgConnection有创建但是没有关闭,那么这个PgConnection就是泄露的连接。

//抓取PgConnection本地端口号和线程栈
watch org.postgresql.jdbc.PgConnection close "{target.getQueryExecutor().pgStream.connection.impl.localport,@org.apache.commons.lang3.exception.ExceptionUtils@getStackTrace(new java.lang.Exception()),throwExp}" -b -n 99999999 > /xxx/xxx/xxx/xxx.txt &

通过分析以上抓取的数据,关闭连接主要有两条路径:
通过业务路径:

at org.postgresql.jdbc.PgConnection.close(PgConnection.java:857)
at com.alibaba.druid.filter.FilterChainImpl.connection_close(FilterChainImpl.java:186)
at com.alibaba.druid.filter.FilterAdapter.connection_close(FilterAdapter.java:777)
at com.alibaba.druid.filter.logging.LogFilter.connection_close(LogFilter.java:481)
at com.alibaba.druid.filter.FilterChainImpl.connection_close(FilterChainImpl.java:181)
at com.alibaba.druid.filter.stat.StatFilter.connection_close(StatFilter.java:294)
at com.alibaba.druid.filter.FilterChainImpl.connection_close(FilterChainImpl.java:181)
at com.alibaba.druid.proxy.jdbc.ConnectionProxyImpl.close(ConnectionProxyImpl.java:114)
at com.alibaba.druid.util.JdbcUtils.close(JdbcUtils.java:85)
at com.alibaba.druid.pool.DruidDataSource.discardConnection(DruidDataSource.java:1546)
at com.alibaba.druid.pool.DruidDataSource.recycle(DruidDataSource.java:2011)
at com.alibaba.druid.pool.DruidPooledConnection.recycle(DruidPooledConnection.java:351)
at com.alibaba.druid.filter.FilterChainImpl.dataSource_recycle(FilterChainImpl.java:5049)
at com.alibaba.druid.filter.logging.LogFilter.dataSource_releaseConnection(LogFilter.java:907)
at com.alibaba.druid.filter.FilterChainImpl.dataSource_recycle(FilterChainImpl.java:5045)
at com.alibaba.druid.filter.stat.StatFilter.dataSource_releaseConnection(StatFilter.java:711)
at com.alibaba.druid.filter.FilterChainImpl.dataSource_recycle(FilterChainImpl.java:5045)
at com.alibaba.druid.pool.DruidPooledConnection.syncClose(DruidPooledConnection.java:324)
at com.alibaba.druid.pool.DruidPooledConnection.close(DruidPooledConnection.java:270)
at org.springframework.jdbc.datasource.DataSourceUtils.doCloseConnection(DataSourceUtils.java:341)
at org.springframework.jdbc.datasource.DataSourceUtils.doReleaseConnection(DataSourceUtils.java:328)
at org.springframework.jdbc.datasource.DataSourceUtils.releaseConnection(DataSourceUtils.java:294)
at org.springframework.jdbc.datasource.DataSourceTransactionManager.doCleanupAfterCompletion(DataSourceTransactionManager.java:329)
at org.springframework.transaction.support.AbstractPlatformTransactionManager.cleanupAfterCompletion(AbstractPlatformTransactionManager.java:1016)
at org.springframework.transaction.support.AbstractPlatformTransactionManager.processCommit(AbstractPlatformTransactionManager.java:811)
at org.springframework.transaction.support.AbstractPlatformTransactionManager.commit(AbstractPlatformTransactionManager.java:730)
at org.springframework.transaction.interceptor.TransactionAspectSupport.commitTransactionAfterReturning(TransactionAspectSupport.java:487)
at org.springframework.transaction.interceptor.TransactionAspectSupport.invokeWithinTransaction(TransactionAspectSupport.java:291)
at org.springframework.transaction.interceptor.TransactionInterceptor.invoke(TransactionInterceptor.java:96)
at org.springframework.aop.framework.ReflectiveMethodInvocation.proceed(ReflectiveMethodInvocation.java:179)
at org.springframework.aop.framework.JdkDynamicAopProxy.invoke(JdkDynamicAopProxy.java:213)
at com.sun.proxy.$Proxy303.xxxxxxx业务方法(Unknown Source)
at sun.reflect.GeneratedMethodAccessor149.invoke(Unknown Source)
at sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:43)
at java.lang.reflect.Method.invoke(Method.java:497)
at com.taobao.hsf.remoting.provider.ReflectInvocationHandler.handleRequest0(ReflectInvocationHandler.java:83)

通过druid Destroy线程路径:

at org.postgresql.jdbc.PgConnection.close(PgConnection.java:857)
at com.alibaba.druid.filter.FilterChainImpl.connection_close(FilterChainImpl.java:186)
at com.alibaba.druid.filter.FilterAdapter.connection_close(FilterAdapter.java:777)
at com.alibaba.druid.filter.logging.LogFilter.connection_close(LogFilter.java:481)
at com.alibaba.druid.filter.FilterChainImpl.connection_close(FilterChainImpl.java:181)
at com.alibaba.druid.filter.stat.StatFilter.connection_close(StatFilter.java:294)
at com.alibaba.druid.filter.FilterChainImpl.connection_close(FilterChainImpl.java:181)
at com.alibaba.druid.proxy.jdbc.ConnectionProxyImpl.close(ConnectionProxyImpl.java:114)
at com.alibaba.druid.util.JdbcUtils.close(JdbcUtils.java:85)
at com.alibaba.druid.pool.DruidDataSource.shrink(DruidDataSource.java:3194)
at com.alibaba.druid.pool.DruidDataSource$DestroyTask.run(DruidDataSource.java:2938)
at com.alibaba.druid.pool.DruidDataSource$DestroyConnectionThread.run(DruidDataSource.java:2922)

【抓取到的创建PgConnection的本地端口号】如果没有出现在【抓取的关闭PgConnection的本地端口号】中,那么这个本地端口号对应的连接就是没有被关闭的,通过与netstat查的端口号对比,是一致的,所以猜测没有调用到PgConnection.close或者调用PgConnection.close出现异常了?

连接池到底做没做释放连接的操作?

以下分别从宏观统计数据和单个未关闭连接的角度分析:数据库连接池到底做没做释放连接的操作。

宏观统计数据

druid记录了很多指标数据:

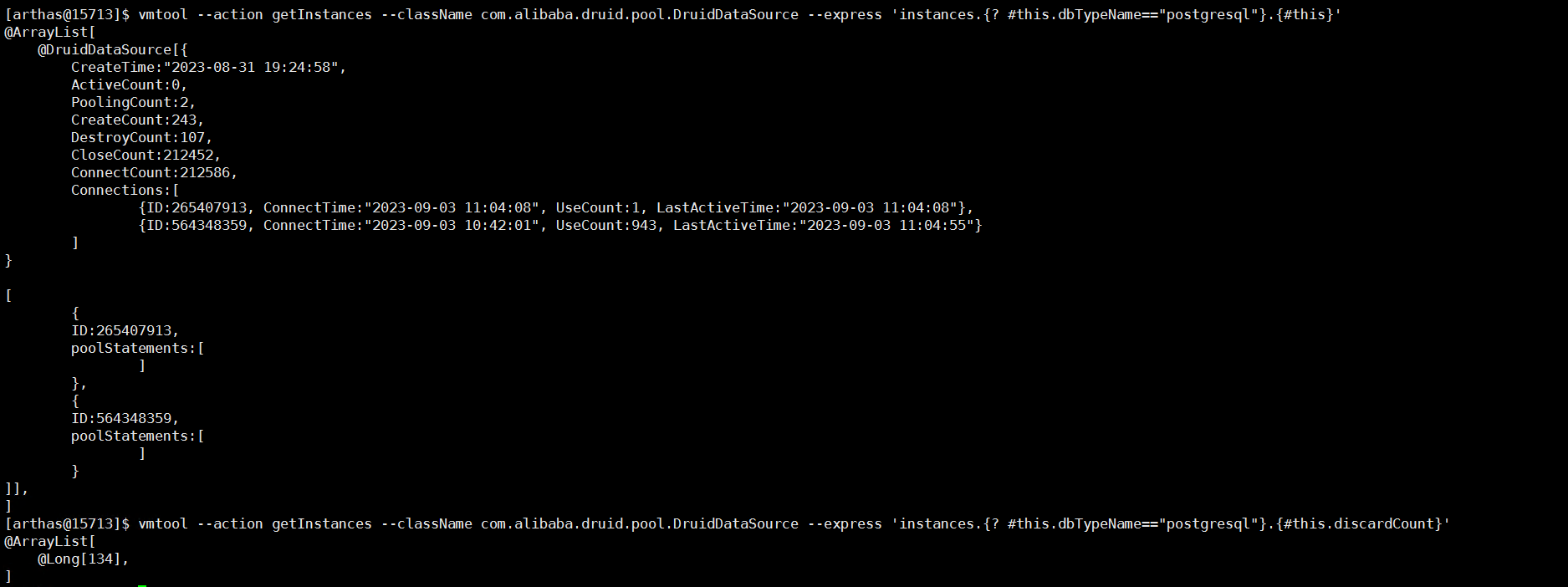

vmtool --action getInstances --className com.alibaba.druid.pool.DruidDataSource --express 'instances.{? #this.dbTypeName=="postgresql"}.{#this}'

vmtool --action getInstances --className com.alibaba.druid.pool.DruidDataSource --express 'instances.{? #this.dbTypeName=="postgresql"}.{#this.discardCount}'

图上几个关键字段说明如下:

序号 字段 说明
1 ActiveCount 当前正在被应用程序使用中的连接数量
2 PoolingCount 当前连接池中空闲的连接数量
3 CreateCount 连接池创建过的物理连接的数量
4 DestroyCount 连接池关闭过的物理连接的数量
5 ConnectCount 应用向连接池申请过的逻辑连接的数量
6 CloseCount 应用向连接池释放过的逻辑连接的数量
7 discardCount 关闭过的物理连接的数量,具体逻辑可以查看discardConnection和shrink方法中的逻辑

这里我们分析两个数据,分别是:

物理连接创建和关闭

通过对druid逻辑分析,得出公式:
CreateCount = ActiveCount + PoolingCount + DestroyCount + discardCount,
将数据代入以上公式,即:243 = 0 + 2 + 107 + 134。

逻辑连接申请和释放

通过对druid逻辑分析,得出公式:
ConnectCount = ActiveCount + CloseCount + discardCount,
将数据代入以上公式,即:212586 = 0 + 212452 + 134。
通过以上分析,从连接池的角度是已经释放连接了。

单个未关闭连接的角度

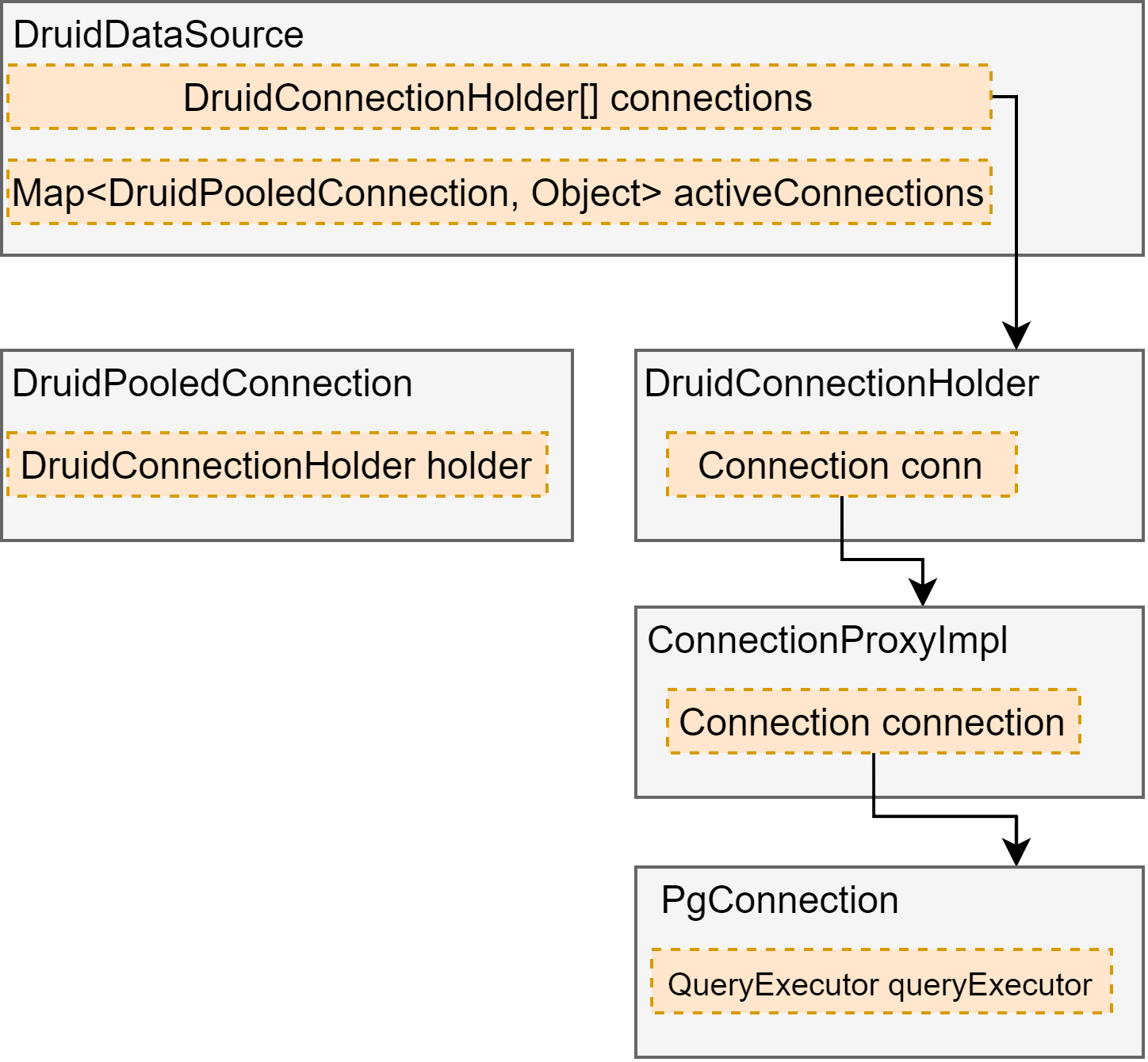

首先需要弄清楚连接池中几个关键对象的关系,当应用向连接池申请连接的时候,连接池返回给应用的是DruidPooledConnection;当应用归还连接到连接池的时候,调用的是DruidPooledConnection.close();某些条件下连接会被关闭。

应用向连接池申请连接


应用向连接池归还连接

归还连接的时候,代码不会走到com.alibaba.druid.util.JdbcUtils.close的逻辑。

关闭连接

如果一个PgConnection被关闭,那么与该PgConnection之前有关联的对象的状态会有变化,下面我们分析下与本地端口号是34802的PgConnection有关系的对象的状态。

DruidPooledConnection
vmtool --action getInstances --className com.alibaba.druid.pool.DruidPooledConnection --express 'instances.{? #this.conn!=null && #this.conn.dataSource.dbTypeName=="postgresql" && #this.conn.connection.getQueryExecutor().pgStream.connection.impl.localport==34802}.{#this.disable}' --limit 200000 -x 2

没有找到对应的对象,说明已经调用了DruidPooledConnection.close(),因为调用close后,会设置该对象的conn为null。

DruidConnectionHolder

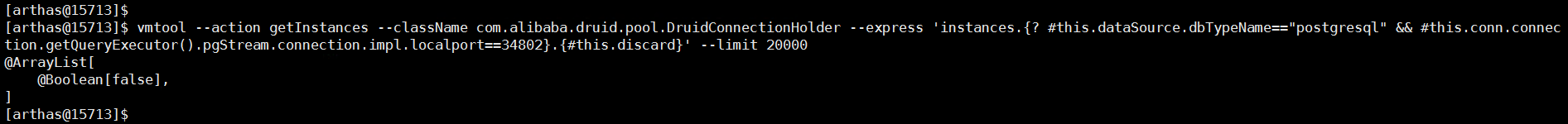

vmtool --action getInstances --className com.alibaba.druid.pool.DruidConnectionHolder --express 'instances.{? #this.dataSource.dbTypeName=="postgresql" && #this.conn.connection.getQueryExecutor().pgStream.connection.impl.localport==34802}.{#this.discard}' --limit 20000

DruidConnectionHolder.discard=false,因为连接的关闭有两条路径:

  • 通过DestroyTask.run路径关闭,不会设置DruidConnectionHolder.discard为true,分析发现泄露连接的discard字段值都为false,所以泄露的连接是通过该路径执行的关闭
  • 通过DruidPooledConnection.close()路径关闭,会设置DruidConnectionHolder.discard为true
ConnectionProxyImpl
@Override
public void close() throws SQLException {
    FilterChainImpl chain = createChain();
    chain.connection_close(this);
    closeCount++;
    recycleFilterChain(chain);
}
vmtool --action getInstances --className com.alibaba.druid.proxy.jdbc.ConnectionProxyImpl --express 'instances.{? #this.dataSource.dbTypeName=="postgresql" && #this.connection.getQueryExecutor().pgStream.connection.impl.localport==34802}.{#this.closeCount}' --limit 20000

ConnectionProxyImpl.closeCount=0,如果连接池正确关闭的话应该等于1。

PgConnection
@Override
public void close() throws SQLException {
    if (queryExecutor == null) {
      return;
    }
    if (queryExecutor.isClosed()) {
      return;
    }
    releaseTimer();
    queryExecutor.close();
    openStackTrace = null;
}
// queryExecutor.close()
@Override
public void close() {
    if (closed) {
      return;
    }

    try {
      LOGGER.log(Level.FINEST, " FE=> Terminate");
      sendCloseMessage();
      pgStream.flush();
      pgStream.close();
    } catch (IOException ioe) {
      LOGGER.log(Level.FINEST, "Discarding IOException on close:", ioe);
    }
    closed = true;
}
// pgStream.close()
@Override
public void close() throws IOException {
    if (encodingWriter != null) {
      encodingWriter.close();
    }

    pgOutput.close();
    pgInput.close();
    connection.close();
}

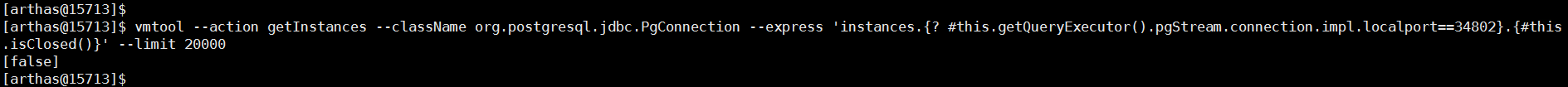

PgConnection.isClosed()=false,如果连接正确关闭的话应该等于true。

继续分析

从以上分析可知,泄露连接DruidConnectionHolder.discard都为false,所以发现问题的代码大概率出现在DestroyTask.run()方法中:该方法主要包括shrink方法和removeAbandoned方法,其中removeAbandoned方法已经在前面分析过,下面主要分析下shrink逻辑,shrink逻辑主要包括(我们的配置不涉及keepAlive处理逻辑):
【筛选出evictConnections和keepAliveConnections】、【从connections中去掉evictConnections和keepAliveConnections的连接】、【处理evictConnections和keepAliveConnections】。

连接池删除了连接,但是连接没close掉?

最开始怀疑问题出在【处理evictConnections和keepAliveConnections】,即在关闭连接的时候出现了异常,虽然连接池中删除了该连接,但是close该连接的时候并没有关闭干净,所以通过arthas watch抓取close阶段是否出现异常:

watch com.alibaba.druid.proxy.jdbc.ConnectionProxyImpl close "{target.connection.getQueryExecutor().pgStream.connection.impl.localport,@org.apache.commons.lang3.exception.ExceptionUtils@getStackTrace(new java.lang.Exception())}" 'target.dataSource.dbTypeName=="postgresql"' -e > /xxx/xxx/xxx/error.txt &

结果没有抓到。
另外从PgConnection角度分析,如果PgConnection调用了close方法,那么PgConnection相关联的org.postgresql.core.QueryExecutorCloseAction类的PG_STREAM_UPDATER会变为null,而PG_STREAM_UPDATER并没有变为null。下面是QueryExecutorCloseAction中的方法:

@Override
public void close() throws IOException {
    ... ...
    PGStream pgStream = this.pgStream;
    if (pgStream == null || !PG_STREAM_UPDATER.compareAndSet(this, pgStream, null)) {
      // The connection has already been closed
      return;
    }
    sendCloseMessage(pgStream);
    if (pgStream.isClosed()) {
      return;
    }
    pgStream.flush();
    pgStream.close();
}

总上分析,泄露的连接压根就没有调用其close方法。

难道在【从connections中去掉evictConnections和keepAliveConnections的连接】阶段把连接弄丢了?

通过分析代码及翻找druid issues,出问题的代码主要在:

int removeCount = evictCount + keepAliveCount;
if (removeCount > 0) {
    System.arraycopy(connections, removeCount, connections, 0, poolingCount - removeCount);
    Arrays.fill(connections, poolingCount - removeCount, poolingCount, null);
    poolingCount -= removeCount;
}

问题大概是这样子的:

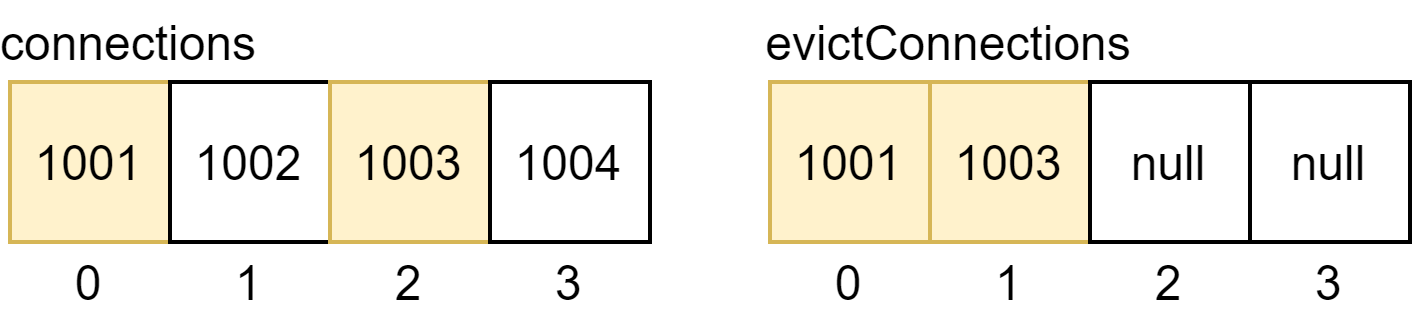

1.假设connections中有四个连接,分别是1001、1002、1003、1004,其中1001、1003被确认是evictConnection
2.去除connections中的evictConnection

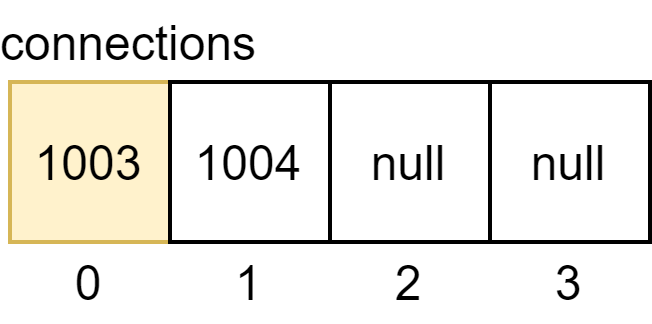

从上面图中可以看出,最终把1002连接给弄丢了,所以该连接也不会再调用到close方法,导致了连接泄露。

解决办法

从druid 1.2.18开始对shrink逻辑进行了优化,可以尝试切换到新版本

点赞收藏
大禹的足迹

在阿里搬了几年砖的大龄码农,头条号:大禹的足迹

请先登录,查看9条精彩评论吧
快去登录吧,你将获得
  • 浏览更多精彩评论
  • 和开发者讨论交流,共同进步

为你推荐

为什么要做代码Review?

为什么要做代码Review?

日常Bug排查-集群逐步失去响应

日常Bug排查-集群逐步失去响应

浅析AbstractQueuedSynchronizer

浅析AbstractQueuedSynchronizer

12
9
